Standard Features
Interface: Keypad with four push buttons
Accuracy: +/- 0.1% to +/- 0.25% of full scale capacity

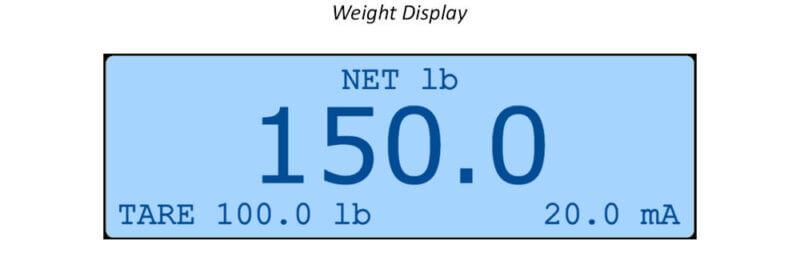

Display: Backlit graphical LCD with up to 6 weight digits
Display Items: Displays net or gross weight, display unit, tare, mA output signal (if applicable), and error status
Display Screens: One (1) per channel
Display Units: Pounds, kilograms, gallons, or liters
Power: 100-250 VAC, 50/60 Hz, max 6 watts
Enclosure: NEMA 4X, UL approved wall mount enclosure
Options
Channels: 1 or 2 – One scale base per channel
Output Signal: 4-20 mA output per channel, based on net weight, scale or loop powered
Remote Option: Can be remotely mounted up to 200 feet from base frame
Longer Cable: Connect Single or Dual Scales to controller at remote location
